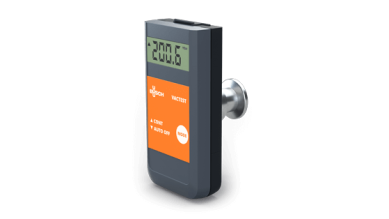

Thiết Bị Đo Lường Busch VACTEST TRP 900 Thiết Bị Đo Lường

(Chưa bao gồm VAT)

Thanh toán dễ dàng

Giao hàng đáng tin cậy

Thông số kĩ thuật

TECHNICAL DATA	VACTEST TRP 900
Measurement principle	Piezoresistive
Materials exposed to vacuum	Stainless steel 1.4305, Al₂O₃ ceramic, FKM
Measurement range	1600–1 mbar
Overpressure limit	4 bar abs.
Measurement uncertainty	< 0.3% full scale (linearity, hysteresis, repeatability)
Resolution	1 mbar
Measuring rate	0.05–6000 s
Serial interface	USB
Electrical connection	2.5 mm mini-jack for external power supply
Supply voltage	9 V block battery or 15 VDC external
Max. battery operating time	2500 h
Power consumption	2 mW
Operating temperature	0 … +50 °C
Protection class	IP40
Weight approx.	200 g
Dimensions (L x W x H)	60 × 47 x 120 mm
Vacuum connection	DN 16 ISO-KF, G ¼″ female thread
