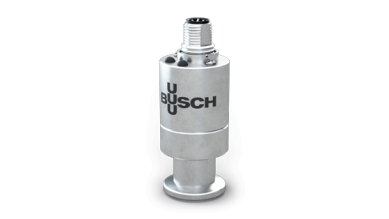

Thiết Bị Đo Lường Busch VACTEST GTP 100 C Thiết Bị Đo Lường

(Chưa bao gồm VAT)

Thanh toán dễ dàng

Giao hàng đáng tin cậy

Thông số kĩ thuật

TECHNICAL DATA	VACTEST GTP 100 C
Measurement principle	Pirani
Materials exposed to vacuum	Stainless steel 1.4307, nickel, platinum / rhodium, glass
Filament material	Platinum / Rhodium
Measurement range	1000–5 · 10⁻⁴ mbar
Overpressure limit	10 bar abs.
Measurement uncertainty	< 30% of reading (1000–10 mbar) , < 10% of reading (10–1 · 10⁻² mbar), < factor 2 (< 1 · 10⁻² mbar)
Repeatability of measurement	±5% of reading (10–1 · 10⁻² mbar)
Leakage rate	< 5 · 10⁻¹⁰ mbar · l/s
Reaction time	< 200 ms
Electrical connection	Hirschmann, 6 poles
Supply voltage	15–30 V
Max. power consumption	1.5 W
Output signal	0–10 V
Operating temperature	+5 … +60 °C
Max. bake-out temperature	150 °C
Protection class	IP40
Weight approx.	120 g
Dimensions (L x W x H)	32 × 32 × 66 mm
Vacuum connection	DN 16 ISO-KF
