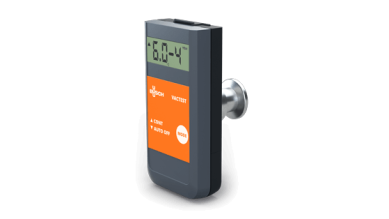

Thiết Bị Đo Lường Busch VACTEST TPP 900 Thiết Bị Đo Lường

(Chưa bao gồm VAT)

Thanh toán dễ dàng

Giao hàng đáng tin cậy

Thông số kĩ thuật

TECHNICAL DATA	VACTEST TPP 900
Measurement principle	Piezoresistive / Pirani
Materials exposed to vacuum	Stainless steel 1.4305, tungsten, nickel, glass
Filament material	Tungsten
Measurement range	1200–5 · 10⁻⁴ mbar
Overpressure limit	2 bar abs.
Measurement uncertainty ( ) ( )	< 10% of reading (40–2 · 10⁻³ mbar), < factor 2 (< 2 · 10⁻³ mbar)
Resolution	1 mbar (1200–1000 mbar), 0.1 mbar (1000–1 mbar), 2 significant digits (< 1 mbar)
Measuring rate	1–6000 s
Serial interface	USB
Electrical connection	2.5 mm mini-jack for external power supply
Supply voltage	9 V block battery or 15 VDC external
Max. battery operating time	100 h
Power consumption	110 mW
Operating temperature	+5 … +50 °C
Protection class	IP40
Weight approx.	230 g
Dimensions (L x W x H)	60 × 62.5 x 120 mm
Vacuum connection	DN 16 ISO-KF
