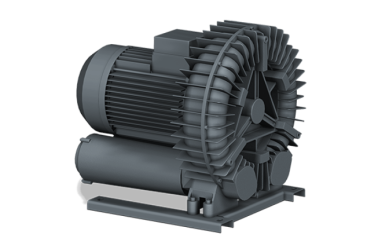

Máy Thổi Khí & Máy Nén Khí Busch SAMOS SI 0540/1150 E1 Máy Thổi Khí & Máy Nén Khí

(Chưa bao gồm VAT)

Thanh toán dễ dàng

Giao hàng đáng tin cậy

Thông số kĩ thuật

TECHNICAL DATA	SAMOS SI 0540 E1 (A)	SAMOS SI 0540 E1 (B)	SAMOS SI 1150 E1 (A)	SAMOS SI 1150 E1 (B)	SAMOS SI 1150 E1 (C)
Technology short name	Side channel	Side channel	Side channel	Side channel	Side channel
Nominal pumping speed/volume flow	600 m³/h	600 m³/h	1200 m³/h	1200 m³/h	1200 m³/h
Max. differential pressure (vacuum version)	-295 hPa (mbar)	-315 hPa (mbar)	-185 hPa (mbar)	-315 hPa (mbar)	-345 hPa (mbar)
Max. differential pressure (overpressure version)	+285 hPa (mbar)	+320 hPa (mbar)	+155 hPa (mbar)	+265 hPa (mbar)	+390 hPa (mbar)
Max. operating power	7.5 kW	9.0 kW	11.0 kW	15.0 kW	20.0 kW
Nominal motor speed	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹
Noise level (ISO 3744)	78 dB(A)	78 dB(A)	82 dB(A)	82 dB(A)	82 dB(A)
Weight approx.	102 kg	102 kg	205 kg	205 kg	205 kg
Dimensions (L x W x H)	602 x 530 x 583 mm	602 x 530 x 583 mm	719 x 570 x 631 mm	719 x 570 x 631 mm	719 x 570 x 631 mm
Gas inlet	G 2½”	G 2½”	G 4″	G 4″	G 4″
Gas outlet	G 2½”	G 2½”	G 4″	G 4″
