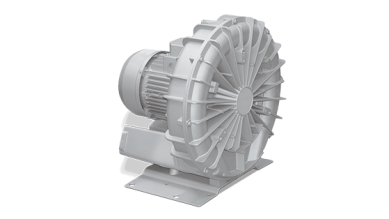

Máy Thổi Khí & Máy Nén Khí Busch SAMOS SI 0210–0500 E1 Máy Thổi Khí & Máy Nén Khí

(Chưa bao gồm VAT)

Thanh toán dễ dàng

Giao hàng đáng tin cậy

Thông số kĩ thuật

TECHNICAL DATA	SAMOS SI 0210 E1 (A)	SAMOS SI 0210 E1 (B)	SAMOS SI 0320 E1 (A)	SAMOS SI 0320 E1 (B)	SAMOS SI 0500 E1 (A)	SAMOS SI 0500 E1 (B)
Technology short name	Side channel	Side channel	Side channel	Side channel	Side channel	Side channel
Nominal pumping speed/volume flow	200 m³/h	200 m³/h	330 m³/h	330 m³/h	500 m³/h	500 m³/h
Max. differential pressure (vacuum version)	-145 hPa (mbar)	-185 hPa (mbar)	-195 hPa (mbar)	-230 hPa (mbar)	-135 hPa (mbar)	-225 hPa (mbar)
Max. differential pressure (overpressure version)	+145 hPa (mbar)	+185 hPa (mbar)	+185 hPa (mbar)	+245 hPa (mbar)	+105 hPa (mbar)	+215 hPa (mbar)
Max. operating power	1.1 kW	1.5 kW	2.2 kW	3.0 kW	4.0 kW	5.5 kW
Nominal motor speed	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹	3000 min⁻¹
Noise level (ISO 3744)	68 dB(A)	68 dB(A)	76 dB(A)	76 dB(A)	77 dB(A)	77 dB(A)
Weight approx.	21 kg	21 kg	32 kg	32 kg	59 kg	59 kg
Dimensions (L x W x H)	284 x 334 x 341 mm	284 x 334 x 341 mm	356 x 395 x 415 mm	356 x 395 x 415 mm	537 x 395 x 414 mm	537 x 395 x 414 mm
Gas inlet	G 1½”	G 1½”	G 2″	G 2″	G 2″	G 2″
Gas outlet	G 1½”	G 1½”	G 2″	G 2″
